Description
The Purebred Party Animal
The mixed wheel Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail.
Being one of the longest standing bikes in our lineup, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night. Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to party. From bike parks to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you are having.
Specification
| FRAME | Patrol Carbon 160mm |
| WHEEL SIZE | Mixed |

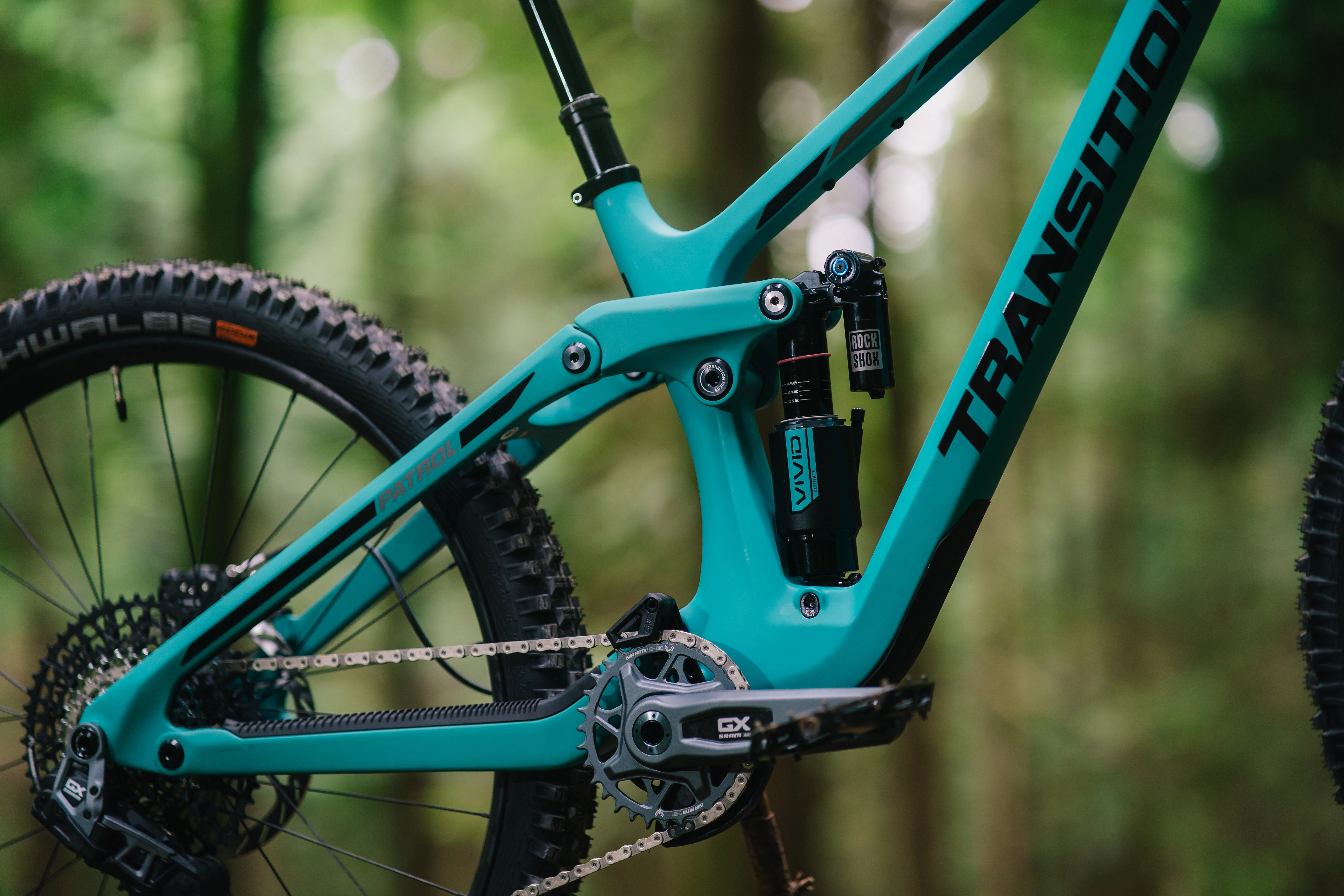

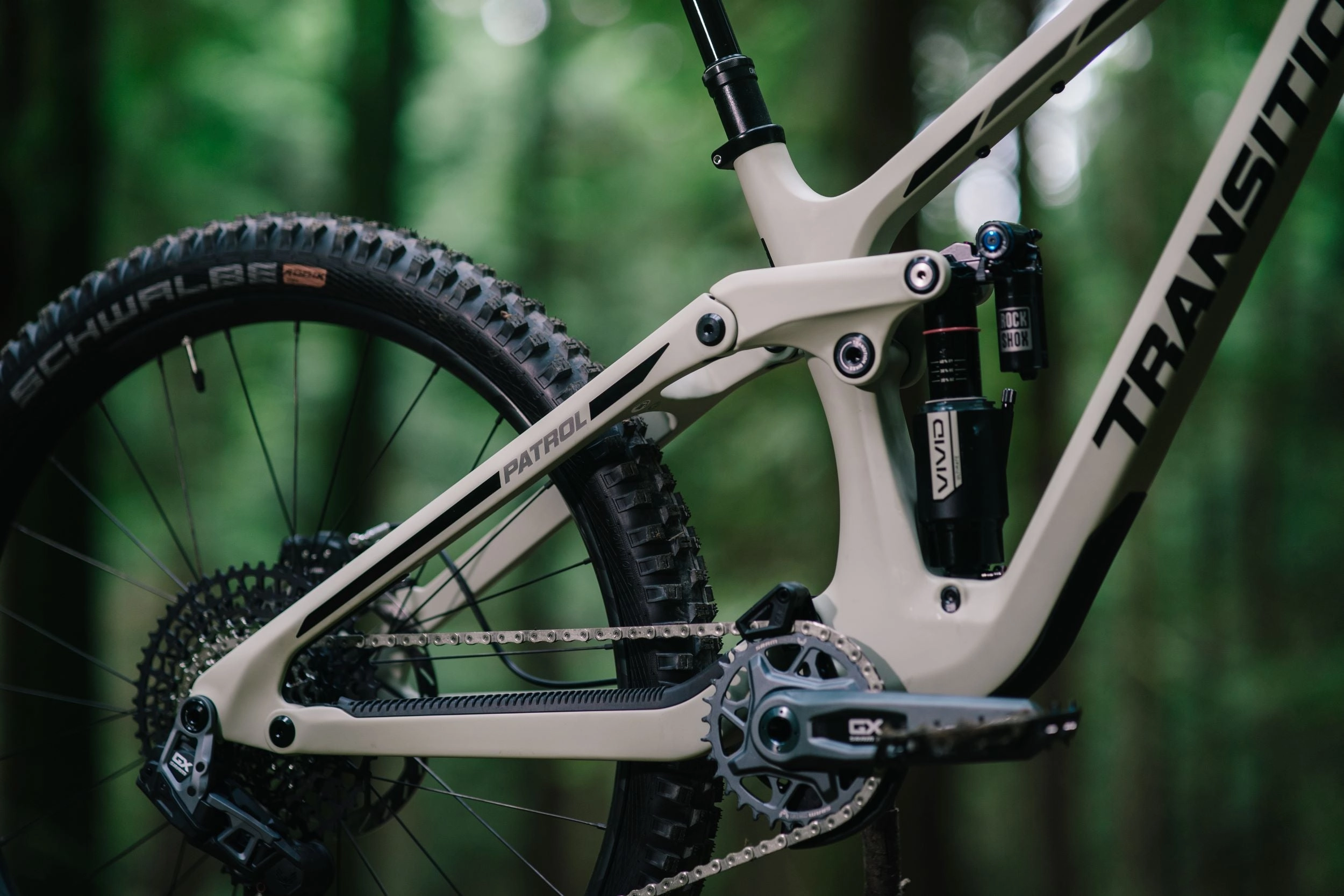

| REAR SHOCK | RockShox Vivid Ultimate (205x60mm) |
| FORK | |
| HEADSET | FSA NO.55R/57 (Included) |
| STEM | |
| HANDLEBAR | |
| GRIPS | |
| SADDLE | |
| SEATPOST | |
| BRAKES | |
| ROTORS | |
| SHIFTER | |
| DERAILLEUR | |
| CASSETTE | |
| CHAIN | |
| CRANK | |
| CHAINGUIDE | |
| RIMS | |
| SPOKES | |
| HUBS | |
| TIRE/FRONT | |
| TIRE/REAR | |
| INCLUDED | |
| WEIGHT |
Geometry
| SM | MD | LG | XL | |
| REACH | 420 / 415 | 455 / 450 | 480 / 475 | 510 / 505 |
| STACK | 623 / 628 | 623 /628 | 632 / 637 | 641 / 646 |
| EFFECTIVE TT LENGTH | 540 / 543 | 575 / 578 | 603 / 606 | 636 / 639 |
| SEAT TUBE LENGTH | 360 | 390 | 430 | 460 |
| EFFECTIVE ST ANGLE | 79.6 / 79.1 | 78.8 / 78.3 | 78.1 / 77.6 | 77.5 / 77 |
| SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 600 | 660 | 720 | 780 |
| ACTUAL ST ANGLE | 70.5 / 70 | 70.5 / 70 | 70.5 / 70 | 70.5 / 70 |
| SEAT TUBE OFFSET AT BB | 100 | 100 | 100 | 100 |
| HEAD TUBE LENGTH | 100 | 100 | 110 | 120 |
| HEAD TUBE ANGLE | 63.5 / 63 | 63.5 / 63 | 63.5 / 63 | 63.5 / 63 |
| CHAINSTAY LENGTH | 434 / 436 | 434 / 436 | 440 / 442 | 440 / 442 |
| WHEELBASE | 1196 / 1198 | 1231 / 1233 | 1266 / 1268 | 1301 / 1303 |
| BOTTOM BRACKET DROP | 15 / 22 | 15 / 22 | 15 / 22 | 15 / 22 |
| ESTIMATED BB HEIGHT | 340 / 333 | 340 / 333 | 340 / 333 | 340 / 333 |
| STAND OVER HEIGHT | 675 / 685 | 690 / 700 | 705 / 715 | 720 / 730 |
| FORK OFFSET | 44 | 44 | 44 | 44 |
